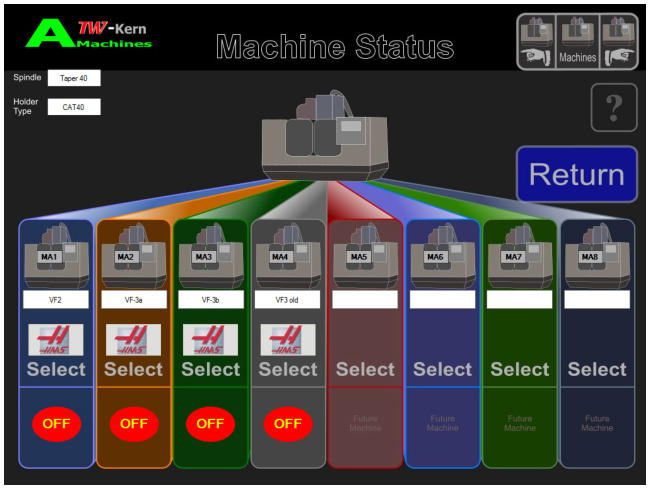

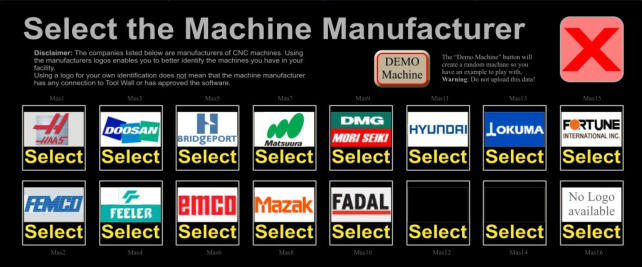

Select
a
Machine

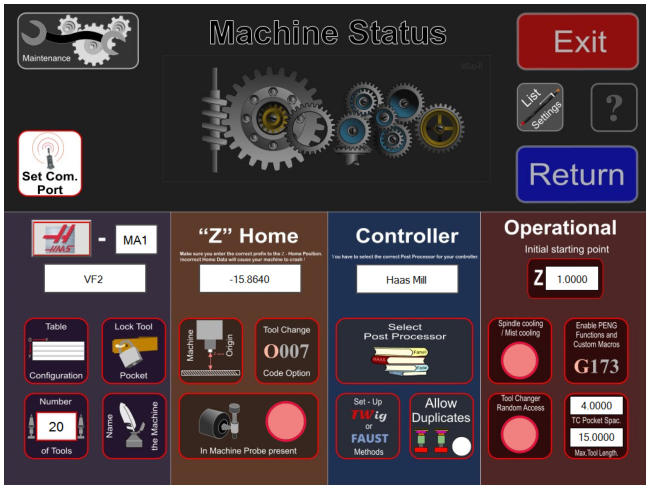

Set all machine specific values.

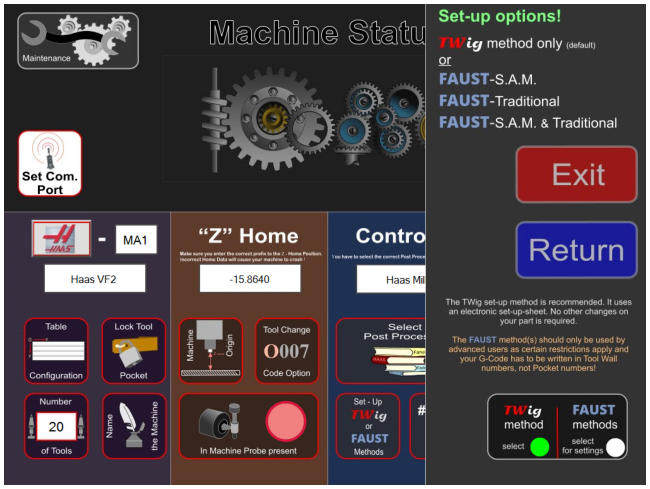

Manage job set-up behaviour.

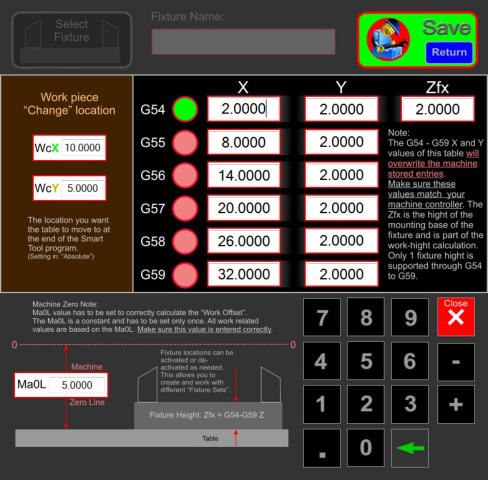

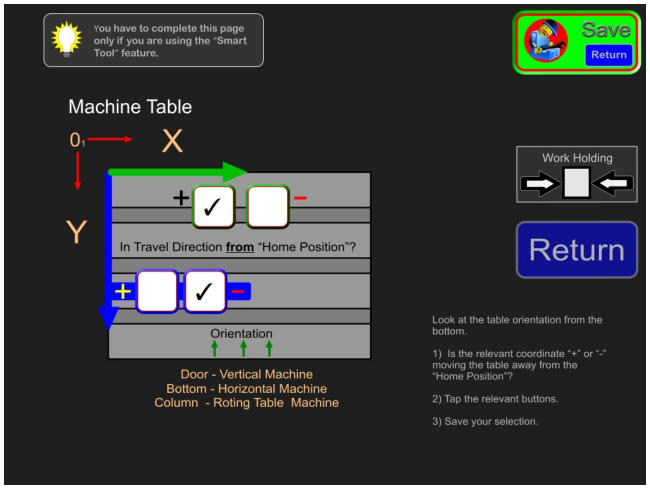

Set the
X - Y
table axis
and the
Work Holding
(G54 - G59)

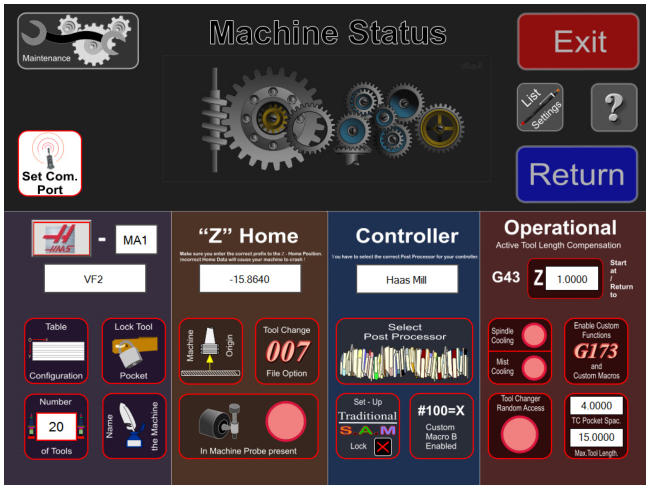

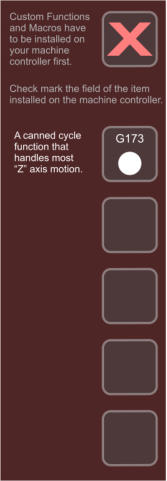

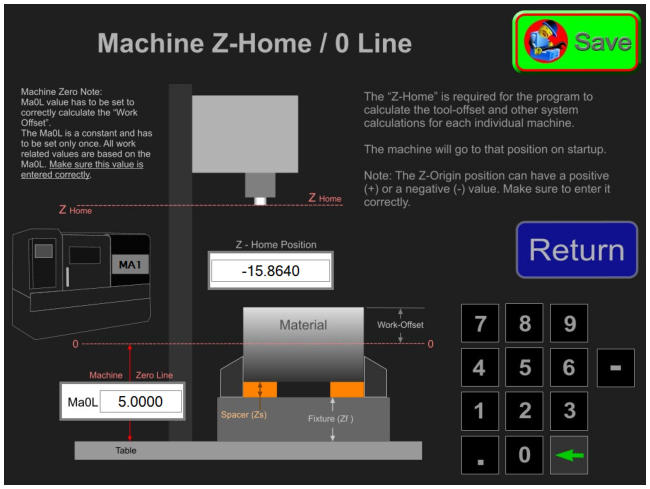

G173 is a custom
function developed by
us to handle all Z-
movements of a tool.
Parameters are
imported from the
tools in Tool Wall,
simplifying
programming.

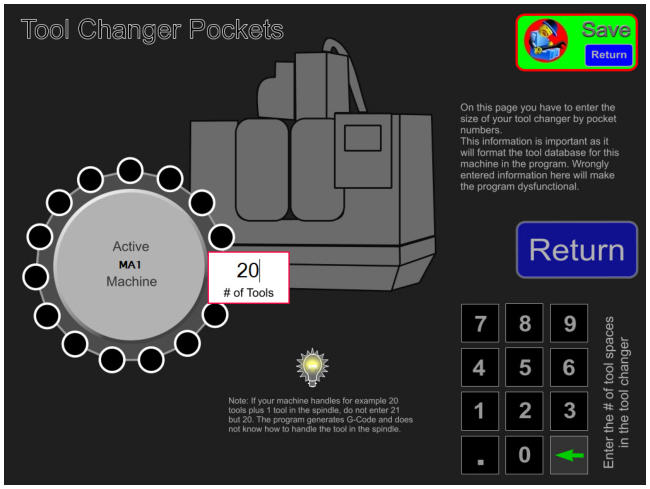

Set the
numbers of tools the
tool changer can
hold.

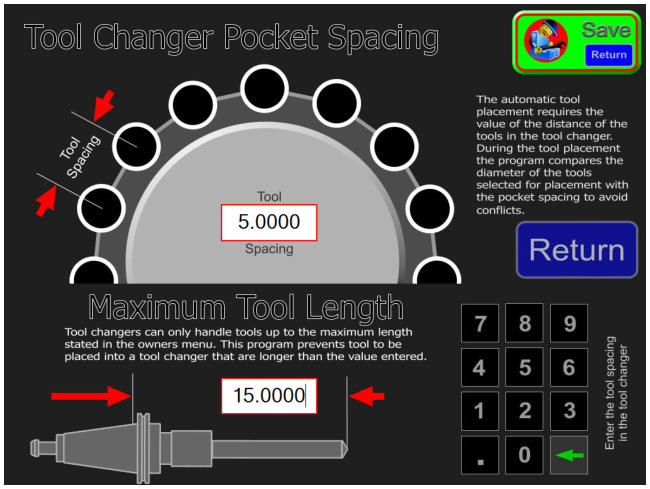

Set the distance
between the centers
of the tool pockets in
the tool changer
Name the Machine. It
should be a name
that is not to be
duplicated.
A name that is
representative and
recognizable.

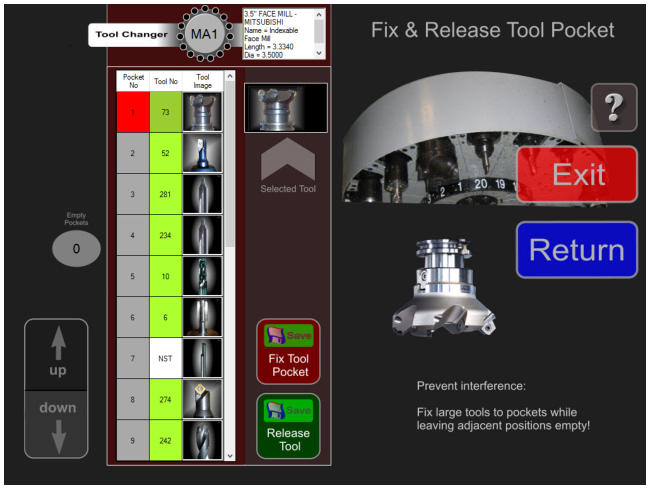

Fix and make a tool
not removable from a
tool pocket in the tool
changer
or set to leave a
pocket next to an
over-sized tool empty.
5S brings vast Productivity, Organisational, Neatness,
Standardisation and Safety improvements when implemented.
5S(methodology) tool handling system
